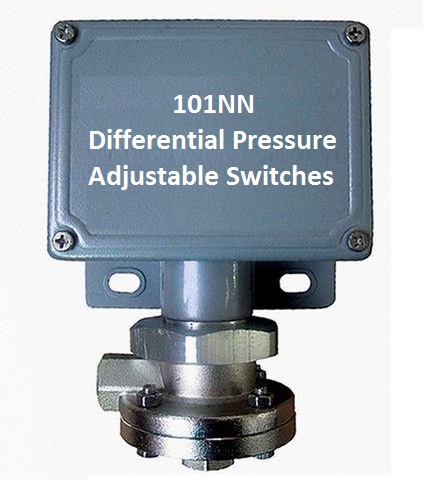

101NN Differential Pressure Switch

  • Female BSP1/4
  • 20-250Kpa
  • High Static Pressure
  • Product description: 101NN Single Diaphragm Differential Pressure Switch is a low cost products, suited for low-to-high differential pressure, fluid power or process applications where high and varying static pressures, h
  • ISO9001 & ISO14001 & IS045001
101NN Single Diaphragm Differential Pressure Switch is a low cost products, suited for low-to-high differential pressure, fluid power or process applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates are expected. Explosion proof differential pressure switches is available. It could work at the oil system for differential pressure control. CE certificate.

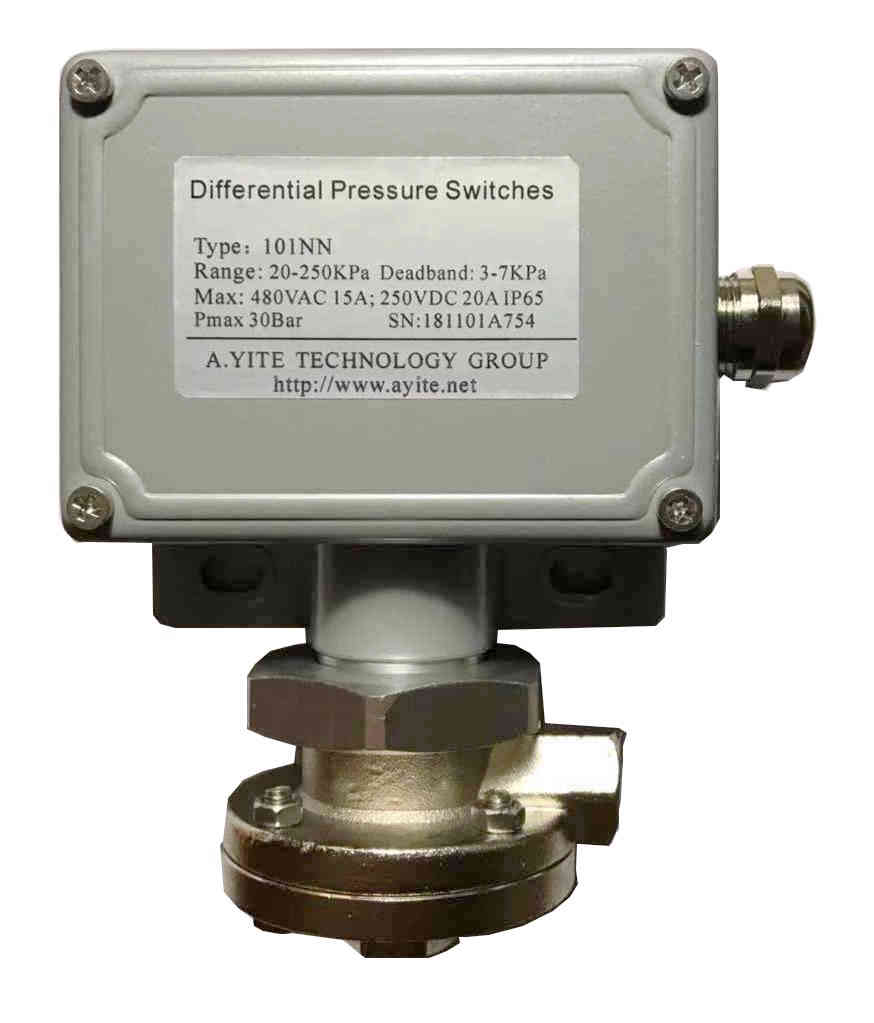

Specification:

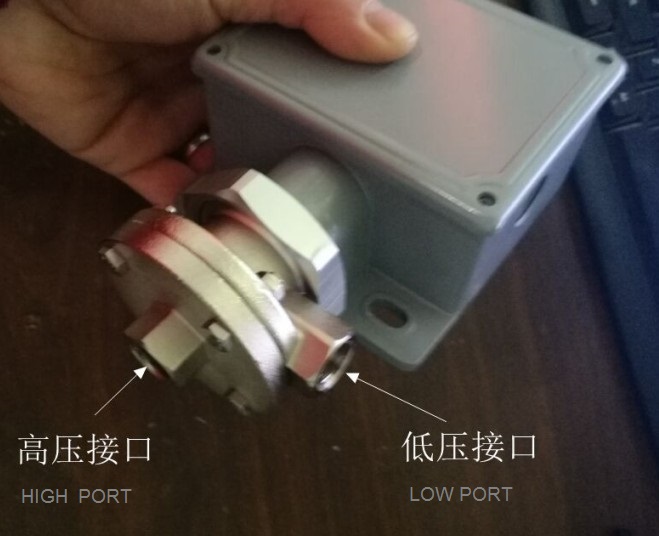

* Pipe Connection: Female BSP1/4"( NPT1/4" in option)
* Setpoint Adjustable Range:
101NN55: 3Psi~36Psi; 20-250Kpa
101NN75: 10Psi~80Psi  70-550Kpa
* Max Break Pressure: 500Psi
* Switch: SPDT NO & NC
* Switch Capacity: Max AC 480V 20A; DC250V 15A.
* Work Accuracy: 1:1000 m2/s
* Repeatability Error: less than 0.5%
* Work Temperature: -20C~100C
* Media Temperature: 0~120C
* Resistance to shock: 40m/s
* Enclosure Rating: IP66


101NN Single Diaphragm Differential Pressure Switch
101NN single diaphragm differential pressure switches are built rugged for low-to-high differential pressure, fluid power or process applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates are expected.
Principal of differential pressure switches
These, field-mounted instruments feature a flexible modular design that provides cost effective sensing solutions for air, oil, water and non-corrosive process fluid applications. The two-piece piston design allows for complete differential pressure reversal without damage.
