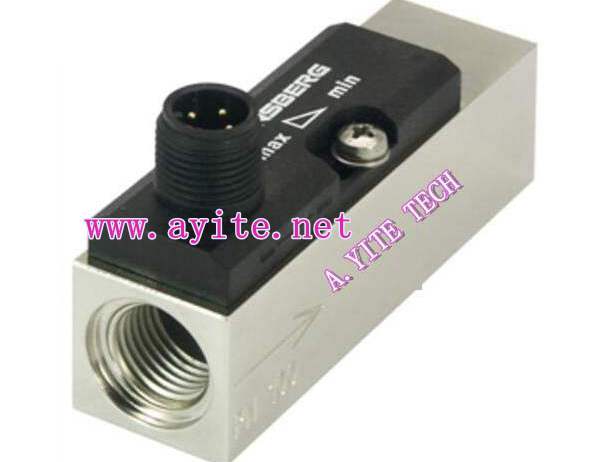

FW1-008GM006 FW1-010GM006

FW1-008GM006 is stainless steel body, 1/4" female thread; Measure range is 1-6l/min.

FW1-010GM006 is stainless steel body, 3/8" female thread; Measure range is 1-6l/min.

This products is produced by ourself, brand is A.YITE, we could supply a very competitive price. We could supply a customized service for different size or connection.

Technology data:

Connection: Internal thread, 1/4" or 3/8"
Contact rating: max 0,5 A
Contact rating: max 50 VA
Electrical connection: M12x1, 4-pole
Flow max: 20 l/min
Flow range: max 6 l/min
Flow range: min 1 l/min
IP class:  IP67
Material of body: SS304
Material spring: Stainless steel 301
Pressure drop: 0.8 bar at maximum flow
Pressure range: max 10 bar
Temperature of media to 90C
Voltage: AC max 230 V
