Solenoid Valve

  • Inlet Solenoid Water Valve Plastic FDA

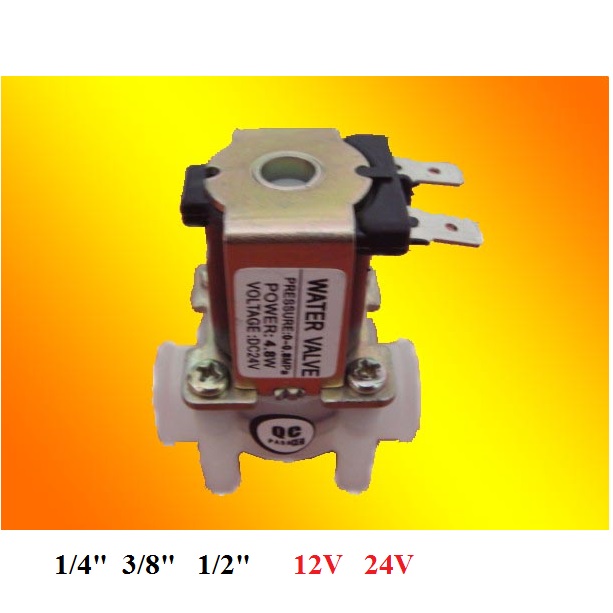

Inlet Solenoid Water Valve Plastic FDA

Inlet Solenoid Water Valve Plastic FDA

  • Very Low Cost
  • Product description: FDA Standard Solenoid Water Valve, suitable for potable & drinking water system, washing machine
  • ISO9001 & ISO14001 & IS045001
The wetted material is adopting FDA Standard, suitable for potable & drinking water system, washing machine. The Inlet Valve is widely used for the RO Instrument, e.g. water clarifier, instant drinking machine. Work with the function of switch, stability, long life-time. Direct action solenoid valve have 2 kind, normal open and normal close. The NC valve is close without power, when the power is connect, the valve could be open with the magnetic function; after stop the power, the valve will get back to close. The NO valve just be opposite.


Specification:
* Water Flow: > 3L/min
* Max Work Pressure: 0.8Mpa
* Max Water Pressure: 2Mpa
* Voltage: DC12V DC24V DC36V  AC220V(12V~240V could be custom-made)
* Input Power: 4.8W (DC24V/190mA)
* Pipe Connector: 1/4" Female Thread; 1/2" Male Thread, 3/4" Male Thread
* Wire Terminal: 6.3lug
* Valve Switch: N.O or N.C
